B2KMP-2 1/2-316L-PM,

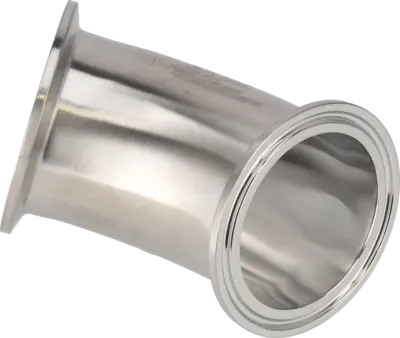

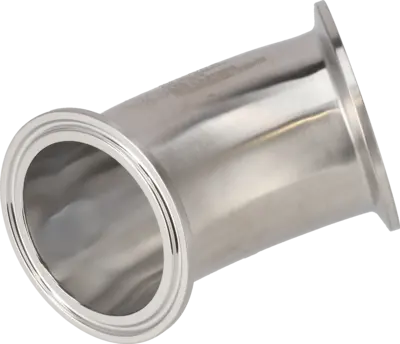

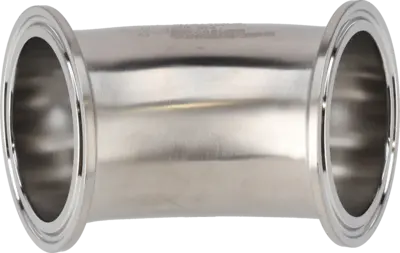

B2KMP-2 1/2-316L-PM, - BPE TC 45 15RAEP/POL OD SF4
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5017
HS Code:
7307290090
Item number:
9634003033
Delivery time:
On request
  • Range: Bends
  • Product Model: Tri-Clover BPE Bends 45
  • Size: 2.5"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B2KMP
  • Item Weight: 0.35
Price:
Login to view price
A: 52.40
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
