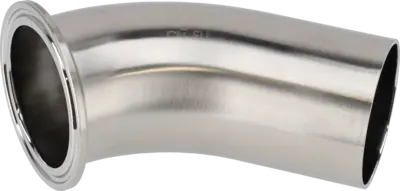

ultrapure-fittings-b2kmw-1-5-316l-sf4-bend-45-asme-bpe-tcxw-dt-4-1-1-5-pm-9634002131-front_medium.webp

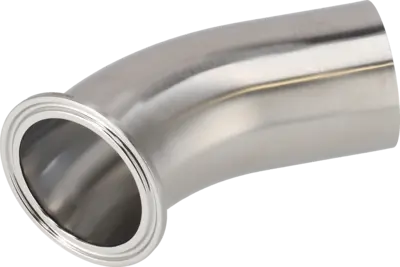

ultrapure-fittings-b2kmw-1-5-316l-sf4-bend-45-asme-bpe-tcxw-dt-4-1-1-5-pm-9634002131-left_medium.webp

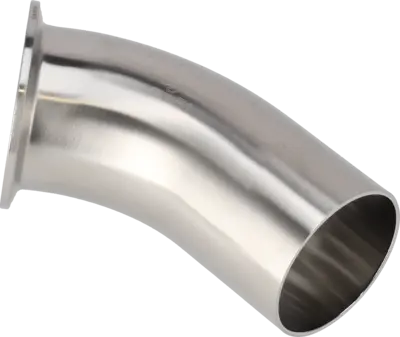

ultrapure-fittings-b2kmw-1-5-316l-sf4-bend-45-asme-bpe-tcxw-dt-4-1-1-5-pm-9634002131-right_medium.webp

B2KMW-1 1/2-316L-PM

B2KMW-1 1/2-316L-PM - BPE TCXW 45 15RAEP/POL OD SF4
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5016
HS Code:
7307290090
Item number:
9634002131
Delivery time:
On request
  • Range: Bends
  • Product Model: Tri-Clover BPE Bends 45
  • Size: 1.5"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B2KMW
  • Item Weight: 0.21
Price:
A: 63.50
B: 36.50
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
