B7RMPS-1.5x1-316L-SF4

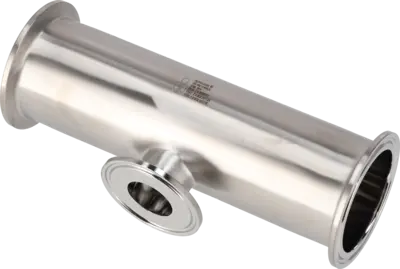

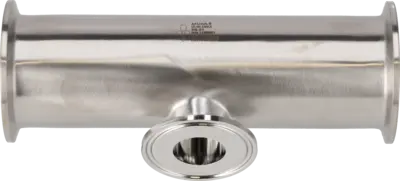

B7RMPS-1.5x1-316L-SF4 - ASME BPE TEE REDUCING TCxTCxSRTC PM DT-4.1.2-9
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5037
HS Code:
7307290090
Item number:
9634003969
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 1.5"
  • Second Size: 1"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: TCxRTC
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.76
Price:
A: 73.00
B: 34.90
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
OD2/ID2 x t2: 25.40/22.10 x 1.65
