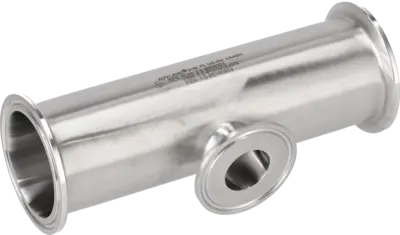

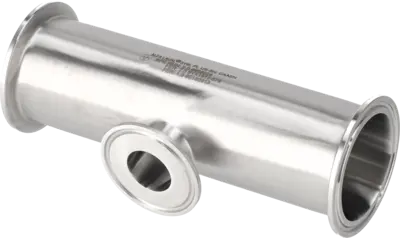

B7RMPS-4x0.75-316L-SF1

B7RMPS-4x0.75-316L-SF1 - ASME BPE TEE REDUCING TCxTCxSRTC PL DT-4.1.2-9
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5037
HS Code:
7307290090
Item number:
9634004018
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 4"
  • Second Size: 0.75"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: TCxRTC
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 1.1
Price:
A: 120.70
B: 66.70
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
OD2/ID2 x t2: 19.05/15.75 x 1.65
