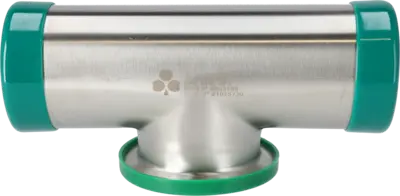

B7WWMS-6-316L-PL

B7WWMS-6-316L-PL - BPE S/O WXTC T 20RA/POL,SF1
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5036
HS Code:
7307290090
Item number:
9634002627
Delivery time:
On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Short
  • Size: 6"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Weld and Short Tri-Clamp
  • Standard: ASME BPE
  • Design: B7WWMS
  • Item Weight: 1.81
Price:
Login to view price
A: 142.90
B: 95.30
OD/ID x t: 152.40/146.86 x 2.77
OD1/ID1 x t1: 152.40/146.86 x 2.77
