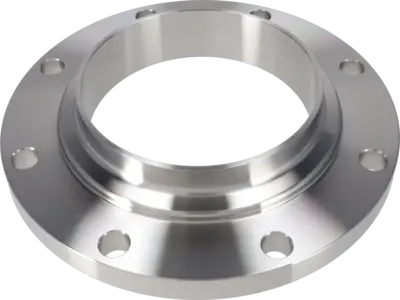

FLANGE PN10 DN125 HSF0 1.4404

FLANGE PN10 DN125 HSF0 1.4404 - FIT TO EN10357-A TUBE GROOVE
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5044
HS Code:
73072910
Item number:
9612493008
Delivery time:
In Stock
  • Range: Flanges
  • Product Model: Fit to DIN Pressure Flanges
  • Size: DN125
  • Material: 1.4404 (316L)
  • Finish: HSF0 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Standard: Fit to EN10357-A
  • Design: Groove PN10
  • Item Weight: 2
Price:
A: 171.00
B: 30.00
C: 15.00
OD/ID x t: 129.00/125.00 x 2.00
OD1/ID1 x t1: 129.00/125.00 x 2.00
Pressure class PN (Bar): 10
