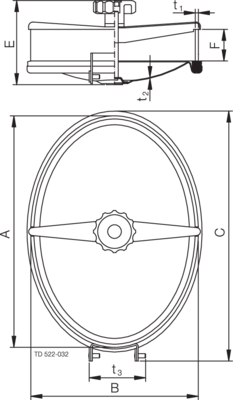

INSPECTION PORT O-440X320-IO

INSPECTION PORT O-440X320-IO - 080-Q-4404-SS HANDLE-LID 2.0 FRAME8-EXT.HINGE
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5517
HS Code:
84229090
Item number:
9614450847
Delivery time:
On request
  • Range: Oval covers
  • Size mm: 440x320
  • Material: 1.4404 (316L)
  • Inside surface quality: Electropolished on Lid to Ra≤0.8 µm and Acid pickled on Frame to Ra≤3.0 µm
  • Position on tank: Below liquid level - on side of the tank
  • Handle design: Handwheel
  • Hinge direction: Neutral
  • Pressure bar: Static
  • Frame height: 80
  • Item weight: 8.7 kg
Price:
