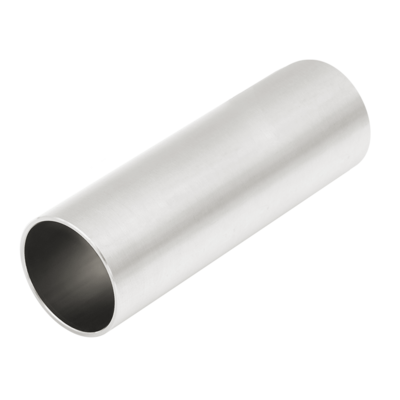

TUBE ASME BPE 50,8X1,65 316L

TUBE ASME BPE 50,8X1,65 316L - PM SF 4 EP Attention: Can only be ordered in 6 meters length.
Manufacturer:
Alfa Laval
In stock:
Green marker: Product is usually in stock. Yellow marker: Lead time may vary. For time-sensitive orders, please contact us to verify current availability. Note: International shipping may require additional time.
Alsis code:
5116
HS Code:
73064080
Item number:
9613407115
Delivery time:
On request
  • Range: Tubes
  • Product Model: Tri-Clover BPE Tubes
  • Size: 50.8 mm
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld ends
  • Standard: ASME BPE
  • Design: ASME BPE
  • Item Weight: 2.02
Price:
Login to view price
OD/ID x t: 50.80/47.50 x 1.65
OD1/ID1 x t1: 50.80/47.50 x 1.65
Length (mm): 6000
